Transflective Series Polarizer Film
Transflective Series Polarizers are transmissive polarizers coated with various transflective film. This provides flexible degree of high/low transmittance and high/low reflectance. Applications include transflection mode TN and STN display.

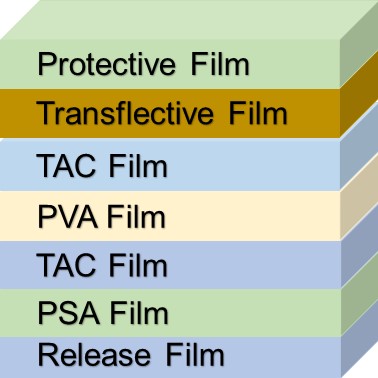

Structure of Polarizer Film for Reflective Series
Polarizer Specifications
| Model | Effective Thickness | Transmit- tance (%) |
Reflective (%) | Polarizing Efficiency | Hue | Remarks | |
|---|---|---|---|---|---|---|---|
| a(NBS) | b(NBS) | ||||||
| 4205T1-Y | 290±20 | 10±2 | 25±2 | 98.0 | -1.0±1.5 | -1.0±1.5 | High Reflection |
| 4205T1-S | 290±20 | 14±2 | 22±2 | 98.0 | -2.0±1.5 | 1.0±1.5 | |
| 4205T2-31 | 270±20 | 18±2 | 21±2 | 99.6 | -1.5±1.5 | 1.0±1.5 | Medium Reflection |
| 4205T2-Y | 290±20 | 16±2 | 20±2 | 98.0 | -2.0±1.5 | -1.0±1.5 | |
| 4205T3-12 | 200±20 | 20±2 | 17±2 | 98.0 | -1.0±1.5 | 0.0±1.5 | |
| 4205T3-18 | 270±20 | 20±2 | 18±2 | 99.0 | -1.0±1.5 | -1.0±1.5 | Medium Durability |
| 4205T3-Y | 270±20 | 20±2 | 19±2 | 98.0 | -1.5±1.5 | -2.5±1.5 | High Transmittance |
| 4205T3-H-Y | 270±20 | 23±2 | 13±2 | 98.0 | -1.0±1.5 | 0.0±1.5 | Ultra-high Transmittance |
| 4105T1-S2 | 240±20 | 10±2 | 25±2 | 98.0 | -2.5±1.5 | -1.0±1.5 | |
| 4205T2-S | 290±20 | 12±2 | 24±2 | 99.6 | -2.5±1.5 | 3.0±1.5 | |
| 4205T3-31 | 270±20 | 21±2 | 19±2 | 98.0 | -1.5±1.5 | 0.0±1.5 | |
| 4205T4-A | 230±20 | 5±2 | >28 | 98.0 | -2.0±1.5 | 5.0±1.5 | |
